Pyrometer CellaTemp PX 35

The CellaTemp® PX 35 has a very short-wave and narrow-band spectral sensitivity. Therefore, the pyrometer reacts to interfering influences such as signal weakening by dust, vapour or smoke in the pyrometer's field of view, to soiling of the protective window or to emissivity fluctuations of the meas

Pyrometer CellaTemp PX 35

Article description

The CellaTemp® PX 35 has a very short-wave and narrow-band spectral sensitivity. Therefore, the pyrometer reacts to interfering influences such as signal weakening by dust, vapour or smoke in the pyrometer's field of view, to soiling of the protective window or to emissivity fluctuations of the measuring object much less than a conventional spectral pyrometer. Metals have the physical property that the emissivity increases with shorter radiation wavelengths and higher object temperatures. Therefore, the CellaTemp® PX 35 is ideal for precise measurement of metals and very hot objects. In addition, the pyrometer is used to measure thin semiconductors, as semiconductors have very good radiation properties in the pyrometer's special spectral range. For wavelengths > 1 µm, silicon is transparent, so a standard pyrometer would measure the temperature of the material behind it through the silicon.

Special features:
This video will only be loaded from YouTube once you click the play button. When loading the video, data will be transmitted to YouTube and processed outside of our control. You can find more information in our privacy policy.
Features of video camera

Pyrometer CellaTemp PX 35
Properties
Version
Measuring range
600 - 3000 °C
Focus distance
0,2 - 0,4 m
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us
More information about IO-Link:

Version CellaTemp PX 35 AF 1
Version CellaTemp PX 35 AF 2
Version CellaTemp PX 35 AF 3
Version CellaTemp PX 35 AF 4
Version CellaTemp PX 35 AF 5
Measuring range 600 - 3000 °C
Focus distance 0,4 m - ∞
Focus distance 0,2 - 0,4 m
Focus distance 1,2 m - ∞
Focus distance 0,2 m - ∞
Focus distance 0,6 m - ∞
Shape of the measuring field round
Distance ratio 210 : 1
Distance ratio 200 : 1
Distance ratio 310 : 1
Distance ratio 55 : 1
Distance ratio 430 : 1
Objective PZ 20.01
Objective PZ 20.03
Objective PZ 20.06
Objective PZ 20.05
Objective PA 20.06
Measuring principle one-colour
Sighting option Through-the-lens-sighting
Sighting option Laser pilot light
Sighting option Video camera

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaTemp PX 35

Technical Data

Measurement parameters

Measuring range 600 - 3000 °C
Sensor Photo diode
Spectral range 0.82 - 0.93 µm
Response time t98 ≤ 50 ms (T > 650 °C)
≤ 2 ms (T > 850 °C)
Measurement uncertainty 0.3 % of temp. reading [°C], min. 4 K
Repeatability 1 K
Temperature coefficient 0.05 %/K
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

Lenses Standard objective lens PZ 20.01: focusing 0.4 m - ∞
Close-up lens PZ 20.03: focusing 0.2 m - 0.4 m
Wide-angle lens PZ 20.05: focusing 0.2 m - ∞
Telephoto lens I PZ 20.06: focusing 1.2 m - ∞
Telephoto lens II PA 20.06: focusing 0.6 m - ∞

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x Open Collector 24 V DC, ≤ 150 mA
Interface IO-Link
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 175 mA for 24 V DC

Camera

Video output Composite PAL, 1 Vpp, 75 Ω

Features

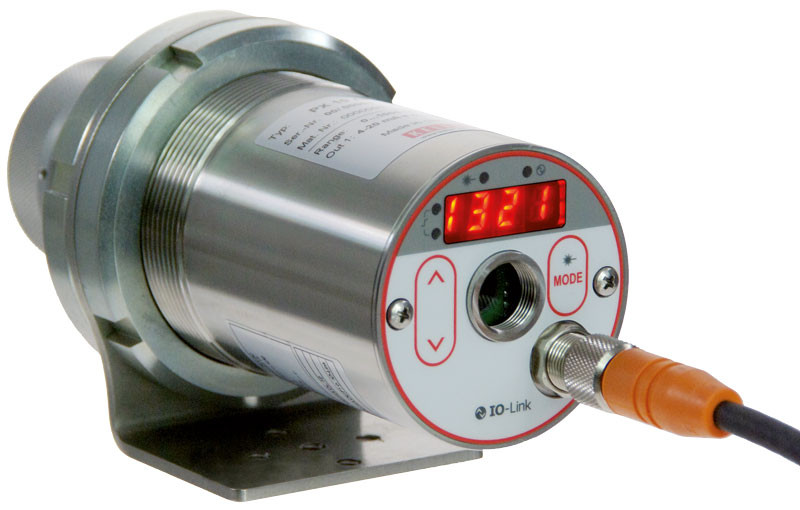

Sighting option Through-the-lens-sighting

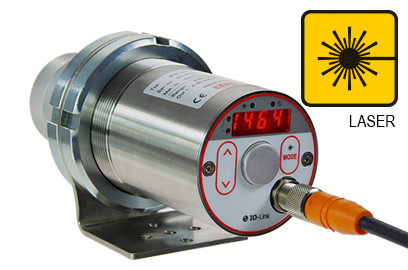

Sighting option Laser pilot light

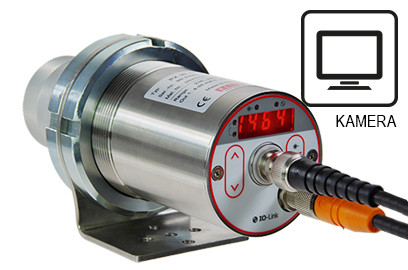

Sighting option Camera
Display 4-digit LED display red, digit-height 8 mm
Status display 4 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 220 mm (max. 277 mm)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.9 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Smoothing filter
Memory operation mode
Hold time of the memory
Emissivity
Transmittance
Limits and operating mode of the alarm contacts
Parameters of the ATD function
Simulation of current and temperature
Temperature unit °C/°F

in addition, for model with camera:
TBC function
White balance
Measuring point number

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaTemp PX
Connection cable VK 02/L AF 1 (5 m)
Video cable VK 02/F (5 m) for model with built-in camera
Manual (short)

Software

Software SW 50

Pyrometer CellaTemp PX 35

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaTemp PX 35

Downloads

Brochure CellaTemp PX
en
Brochure Flyer IO-Link
en
Brochure Supplementary lenses
en
Manual CellaTemp PX 1x 2x 3x
en
Quick guide CellaTemp PX 1x 2x 3x
en
Declaration of conformity Declaration from Conformity PXxx
en
UKCA Declaration from Conformity PXxx
en
EAC Deklaration PX
en

Pyrometer CellaTemp PX 35

Accessories

Pyrometer CellaTemp PX 35

IO-Link IODD

Type Datei Dateigröße
IODD PX35AF1-2-3-4-5_20190109.zip 1481 KB Download
IODD PX35AF1-2-3-4-5-C_20190109.zip 1486 KB Download
IODD PX35AF1-2-3-4-5-L_20190503.zip 1740 KB Download

Pyrometer CellaTemp PX 35

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PX 35 AF 1 2 3 4 5_20190110_en.pdf 366 KB Download
MC PX 35 AF 1 2 3 4 5 L_20190111_en.pdf 364 KB Download
MC PX 35 AF 1 2 3 4 5 C_20190110_en.pdf 366 KB Download

Pyrometer CellaTemp PX 35

Measuring field calculator

Pyrometer
  • PX 35 AF 1 (0,4 m - ∞)
  • PX 35 AF 2 (0,2 - 0,4 m)
  • PX 35 AF 3 (1,2 m - ∞)
  • PX 35 AF 4 (0,2 m - ∞)
  • PX 35 AF 5 (0,6 m - ∞)
PX 35 AF 1 (0,4 m - ∞)
Attachment lens
  • None
  • PZ 20/0-50 (0,036 - 0,041 m)
  • PZ 20/O-63 (0,045 - 0,054 m)
  • PZ 20/O-75 (0,052 - 0,063 m)
  • PZ 20/O-120 (0,084 - 0,112 m)
None
Focus distance
mm
Graphic length
mm
Measuring distance (mm)03264961281601922242562883203523841.90 mm
Measuring distanceMeasuring field diameter
0.00 mm18.00 mm
16.00 mm17.36 mm
32.00 mm16.71 mm
48.00 mm16.07 mm
64.00 mm15.42 mm
80.00 mm14.78 mm
96.00 mm14.14 mm
112.00 mm13.49 mm
128.00 mm12.85 mm
144.00 mm12.21 mm
160.00 mm11.56 mm
176.00 mm10.92 mm
192.00 mm10.27 mm
208.00 mm9.63 mm
224.00 mm8.99 mm
240.00 mm8.34 mm
256.00 mm7.70 mm
272.00 mm7.06 mm
288.00 mm6.41 mm
304.00 mm5.77 mm
320.00 mm5.12 mm
336.00 mm4.48 mm
352.00 mm3.84 mm
368.00 mm3.19 mm
384.00 mm2.55 mm
400.00 mm1.90 mm
