Measuring system PKL 28-K003

Article description

Measuring system consisting of:

Special features:

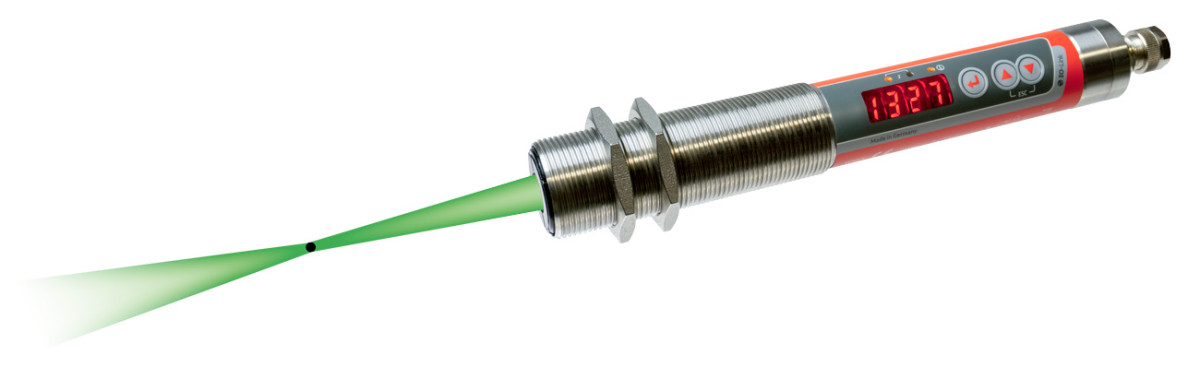

Infrared thermometer with integrated LED pilot light for exact indication of the position and size of the measuring field and the focus point
Analogue output and IO-Link interface
Flexibly adjustable holding device

Measuring system PKL 28-K003

You can request this article from us
Quantity:

Technical Data Downloads Measurement field calculator Accessories Emissivity calculator Application request

Measuring system PKL 28-K003

Downloads

Measuring system PKL 28-K003

Measurement field calculator

Measuring distance	Measuring field diameter
0.00 mm	38.00 mm
60.96 mm	36.49 mm
121.92 mm	34.98 mm
182.88 mm	33.48 mm
243.84 mm	31.97 mm
304.80 mm	30.46 mm
365.76 mm	28.95 mm
426.72 mm	27.45 mm
487.68 mm	25.94 mm
548.64 mm	24.43 mm
609.60 mm	22.92 mm
670.56 mm	21.41 mm
731.52 mm	19.91 mm
792.48 mm	18.40 mm
853.44 mm	16.89 mm
914.40 mm	15.38 mm
975.36 mm	13.88 mm
1,036.32 mm	12.37 mm
1,097.28 mm	10.86 mm
1,158.24 mm	9.35 mm
1,219.20 mm	7.84 mm
1,280.16 mm	6.34 mm
1,341.12 mm	4.83 mm
1,402.08 mm	3.32 mm
1,463.04 mm	1.81 mm
