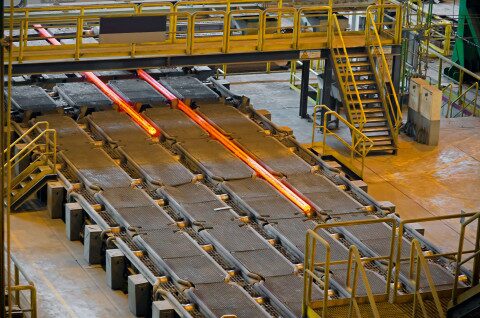

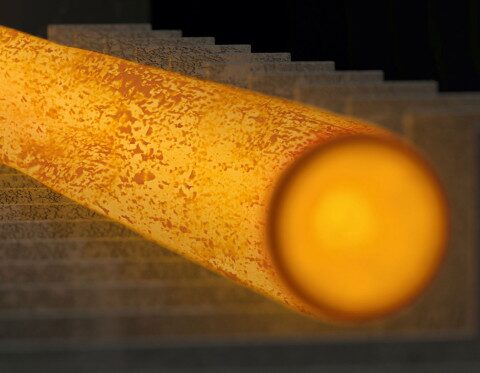

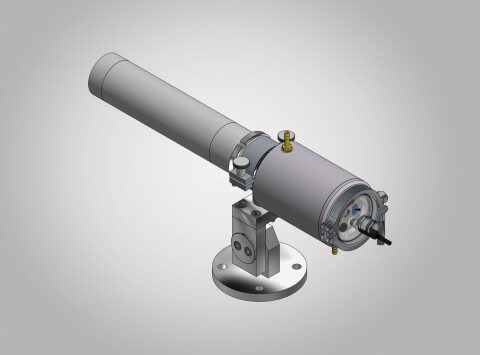

Pyrometers have proven their worth for measuring the temperature during piercing, stretching and finish rolling. They measure the infrared radiation of the objects and calculate the temperature according to the Planck’s law of radiation. The radiation is measured contactless from a safe distance and without destroying the workpiece. The temperature is recorded in a few milliseconds and serves as a monitoring and control variable for the heating and rolling process.
To avoid the interference of scale and oxide, the pyrometers have a CSD (Clean Surface Detection) function. In combination with a high-resolution lens and a very short measuring time, the true temperatures are filtered out of the scale- and oxide-free surface.
Application report tube rolling mill
Features
- CSD (Clean Surface Detection) function to detect true object temperature
- very high optical resolution for measuring hot spots from a safe distance
- two-colour (ratio) measuring method for reliable measurement despite dust, vapour and smoke
Application report Tube rolling mill
Application report rolling stand

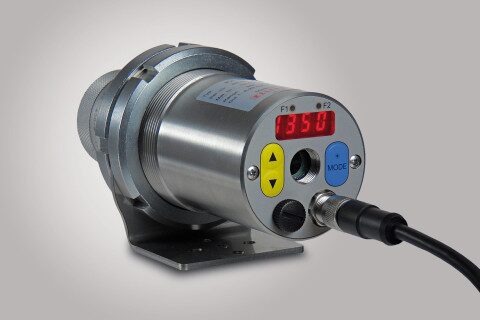

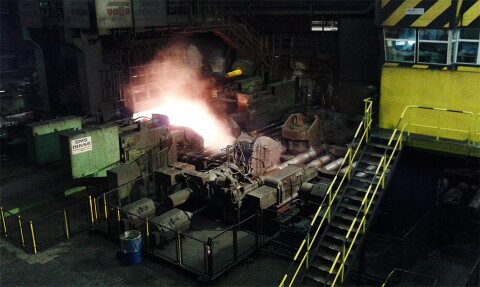

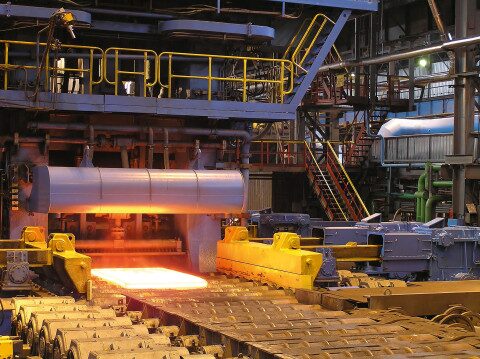

To determine the slab temperature, optical pyrometers are used, which measure the infrared radiation of the object without contact from a safe distance and determine the temperature from this. At the relevant measuring points, there is a risk of heavy water vapour and smoke in the pyrometer's field of view. However, in order to measure the temperature reliably, two-colour pyrometers are used.
The two-colour measuring method compensates for such interferences and indicates the correct temperature even if the infrared radiation is weakened by intermediate media.
The two-colour measuring method compensates for such interferences and indicates the correct temperature even if the infrared radiation is weakened by intermediate media.
Features
- short-wave two-colour measuring method for object temperatures from 500 °C
- choice of sighting devices: through-the-lens sighting, laser pilot light or video camera
- compact design or as fibre optic version with separate optical measuring head
Application report Roller stand
Application report metal strips

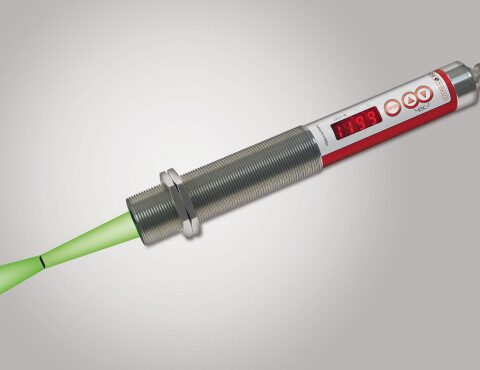

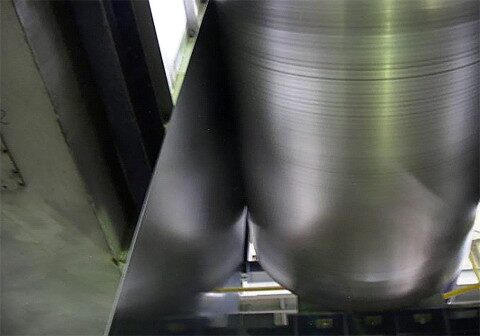

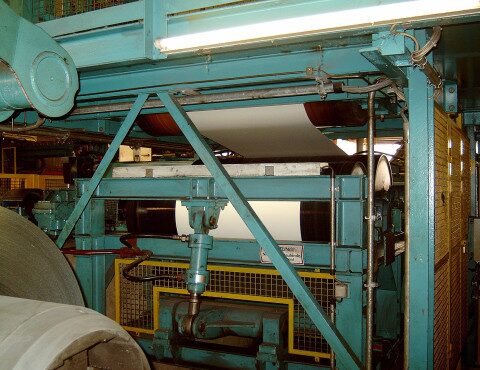

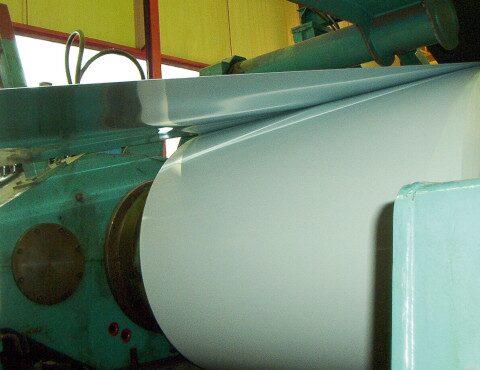

Measuring metal strips at low temperatures is a challenging measurement task for non-contact temperature measurement due to the very low thermal radiation and the special radiation properties of metals. For object temperatures from approx. 75 °C, short-wave measuring devices can be used. However, these devices react sensitively to interference from artificial light or sunlight up to approx. 150 °C object temperature. For reliable measurement at low temperatures, measures to shade out the external radiation of daylight are therefore necessary.
Features
- system solutions for low temperature measurement of metal strips
- wear-free and maintenance-free pyrometers based on constant light technology
- patented measuring method for the detection of the smallest infrared radiation

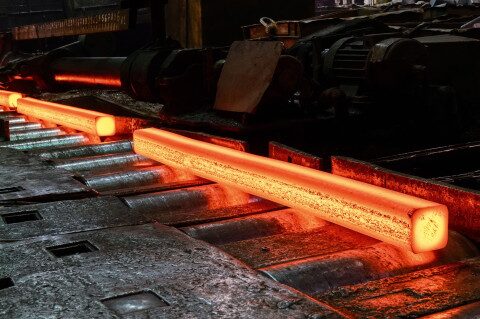

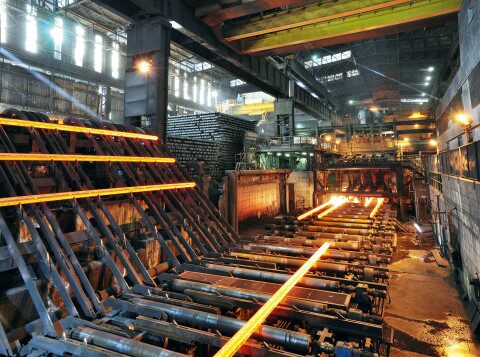

Application report Bar mill
Application report CellaWire

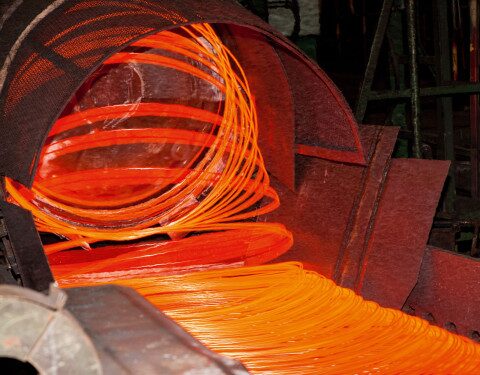

Temperature-controlled rolling is the prerequisite for achieving the desired material properties while at the same time maximizing efficiency in wire production. In order to be able to ensure today's high demands on the required close tolerances of the rolling temperature, modern measuring methods and measuring systems suitable for the respective measuring points are required.
Pyrometers have proved their worth for measuring the temperature of the wire rod blocks and the wire. The radiation is measured optically and contactless from a safe distance and thus without destroying the workpiece.
To avoid the interference of scale and oxide, the pyrometers have a CSD (Clean Surface Detection) function. In combination with a high-resolution lens and a very short measuring time, the true temperatures are filtered out of the scale- and oxide-free surface.
Pyrometers have proved their worth for measuring the temperature of the wire rod blocks and the wire. The radiation is measured optically and contactless from a safe distance and thus without destroying the workpiece.
To avoid the interference of scale and oxide, the pyrometers have a CSD (Clean Surface Detection) function. In combination with a high-resolution lens and a very short measuring time, the true temperatures are filtered out of the scale- and oxide-free surface.
Features
- CSD (Clean Surface Detection) function to detect true object temperature
- very high optical resolution for measuring even small bars from a safe distance
- choice of sighting devices: through-the-lens sighting, laser pilot light or video camera
Application report CellaWire
Application report metal strips
Measuring metal strips at low temperatures is a challenging measurement task for non-contact temperature measurement due to the very low thermal radiation and the special radiation properties of metals. For object temperatures from approx. 75 °C, short-wave measuring devices can be used. However, these devices react sensitively to interference from artificial light or sunlight up to approx. 150 °C object temperature. For reliable measurement at low temperatures, measures to shade out the external radiation of daylight are therefore necessary.
Features
- system solutions for low temperature measurement of metal strips
- wear-free and maintenance-free pyrometers based on constant light technology
- patented measuring method for the detection of the smallest infrared radiation
Application report Metal sheets
Application report strip galvanizing

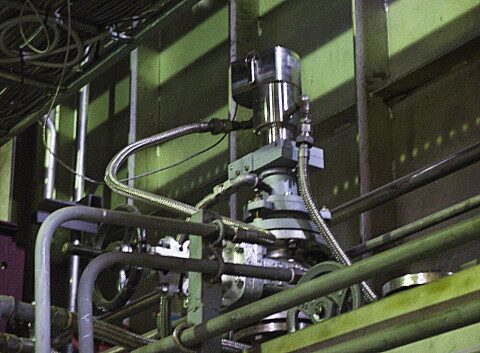

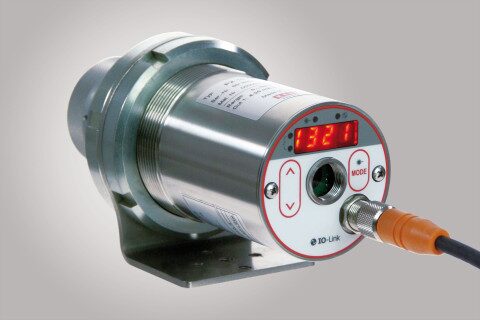

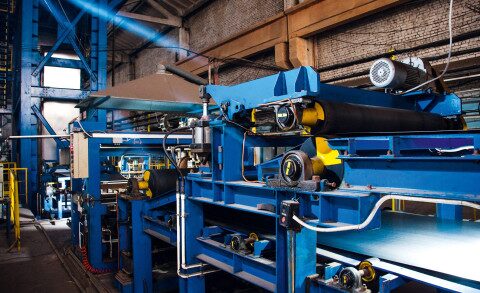

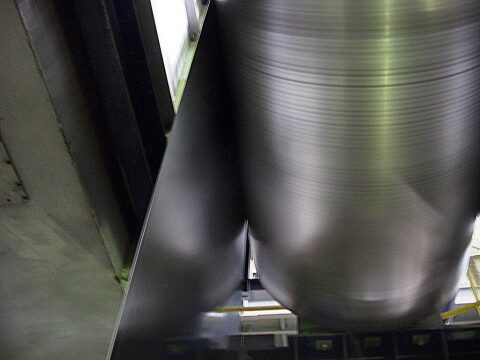

In the strip galvanizing field, temperature measurement plays a key role in ensuring optimum adhesion of the zinc coating and guaranteeing the desired quality of the end product. Steel strips are galvanized by immersing the strip in molten zinc. The temperature must be precisely monitored at various points in the plant in order to achieve the best possible results. Modern measuring methods and systems suitable for the respective measuring points are required in order to fulfil the high metrological requirements. A temperature-controlled production is the prerequisite for achieving the desired material properties while maximizing energy efficiency.
Features
- System solutions for all measuring points in a strip galvanizing plant
- Two-colour measuring procedure for measurements before the zinc bath point
- Patented measurement method for recording low temperatures on bare metal surfaces
Application report Strip galvanizing
Application report continuous annealing line
Temperature measurement in a continuous annealing line plays a key role in optimizing the annealing process and ensuring the quality of the strip. Precise temperature control is crucial in order to achieve the metallurgical properties of the end product. In addition, temperature measurement helps to avoid overheating or insufficient temperatures, which could lead to inefficient processes or even damage to the furnace. Modern measuring methods and systems suitable for the respective measuring points are required in order to fulfil the high metrological requirements. A temperature-controlled production is the prerequisite for achieving the desired material properties while maximizing energy efficiency.
Features
- System solutions for all measuring points in a continuous annealing line
- Wear-free and maintenance-free pyrometers based on equal light technology
- Patented measuring methods for detecting low temperatures on bare metal surfaces
Application report Coninuous annealing line

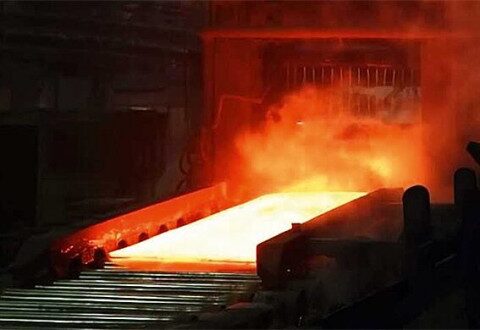

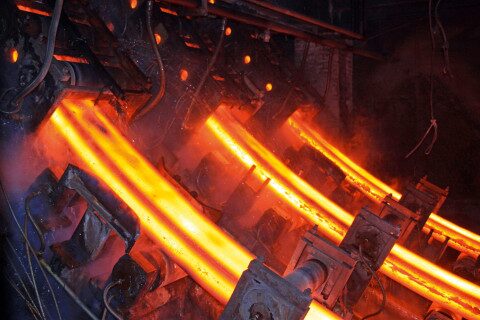

Application report continuous casting

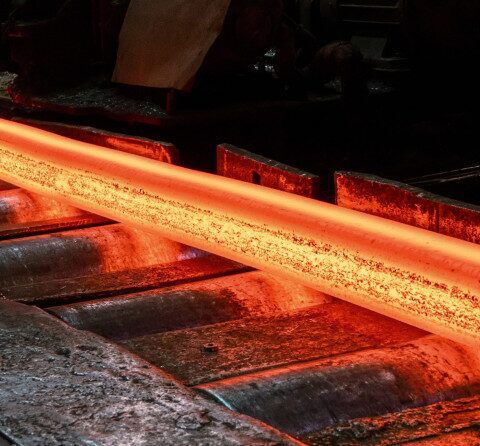

The increasing requirements for the material properties become ever more demanding for producers in terms of the production process and production parameters. For this purpose, very tight tolerances are specified by the quality control. In order to be able to meet these high requirements, modern measuring methods and measuring systems adapted to the respective measuring points are absolutely necessary. A temperature-controlled production is the prerequisite for achieving the desired material properties while maximizing energy efficiency.
Features

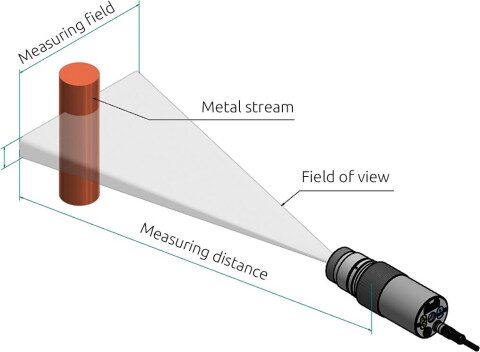

- Parnorama pyrometer with ATD (Automatic Temperature Detection) function for measuring the casting stream
- Two-colour pyrometer with CSD (Clean Surface Detection) function for detecting the correct temperature of the slab despite scale
- Fibre optic pyrometer for measuring the slab from below despite high ambient temperatures
Application report Continuous casting

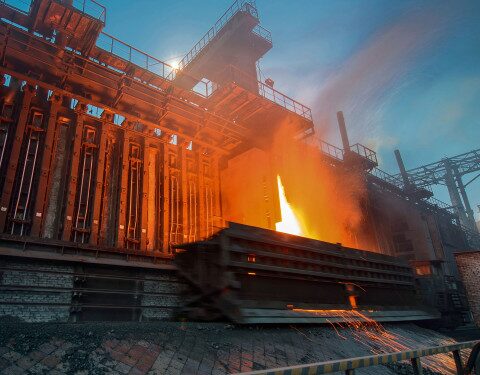

Coking plant application report

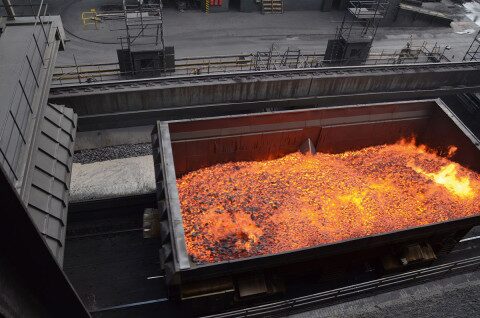

The quality and yield of the coke as well as the service life of the coke oven depend on the temperature and temperature equilibrium of the coke oven chambers in the coke oven battery. In order to be able to meet the high metrological requirements of the harsh measuring conditions and very high ambient temperatures, modern measuring methods and measuring systems developed for the respective measuring points are absolutely essential. Temperature-controlled production is the prerequisite for achieving the desired material properties with maximum efficiency.
At the relevant measuring points, the pyrometer's field of view is affected by water vapor and heavy dust and smoke formation. If the temperature is to be reliably recorded here, ratio pyrometers are absolutely essential. A ratio pyrometer compensates for these influences and still displays the correct temperature even if the infrared radiation is attenuated.

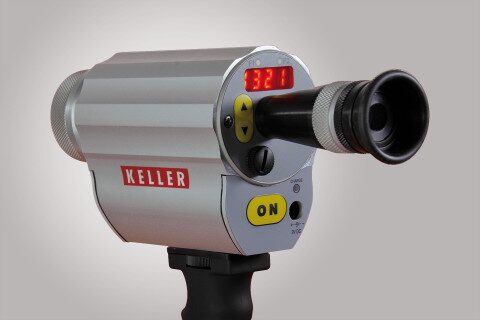

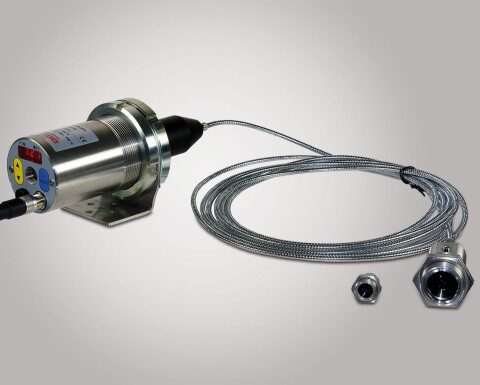

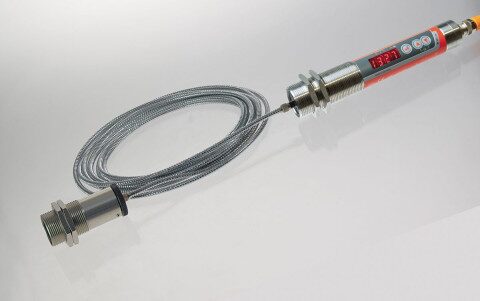

Pyrometers with a separate optical measuring head are used due to the high ambient temperature at the measuring location. An optical fiber transmits the infrared radiation to the electronics mounted in a safe area.
At the relevant measuring points, the pyrometer's field of view is affected by water vapor and heavy dust and smoke formation. If the temperature is to be reliably recorded here, ratio pyrometers are absolutely essential. A ratio pyrometer compensates for these influences and still displays the correct temperature even if the infrared radiation is attenuated.
Pyrometers with a separate optical measuring head are used due to the high ambient temperature at the measuring location. An optical fiber transmits the infrared radiation to the electronics mounted in a safe area.
Features
- Reliable temperature measurement based on the quotient measuring method
- Small optical measuring head M16 for mounting inside the pusher arm
- Fiber optic pyrometer with separate optics and electronics with fiber optic lengths of up to 50 m
Application report Coking plant
