Measuring range	500 - 2500 °C
Sensor	Thermopile
Spectral range	CO range
Response time t98	≤ 100 ms
Measurement uncertainty	0.75 % of temp. reading [°C], min. 3 K
Repeatability	2 K
Temperature coefficient	0.04 %/K
Resolution interface	0.1 K
Resolution display	1 K

Lenses

Standard-Objektiv PZ 15.03: Fokussierung  0,8 m - ∞

Interface	USB
Power supply	Rechargeable battery pack Battery life: approx. 15 hours (based on continuous operation at Ta=23 °C)

Sighting option	Through-the-lens-sighting
Display	4-digit LED display red, digit-height 8 mm
Status display	2 x LED external 3 x LED internal
Control elements	3 buttons

Ambient temperature	0 - 50 °C
Storage temperature	-20 - +60 °C
Permissible humidity	95 % r.H. max. (non-condensing)
Dimension	Ø 65 mm x 197 mm (plus lens length)
Housing	Aluminium
Protection class	IP 40 acc. to DIN 40050
Weight	approx. 1.1 kg

Parameters

Emissivity Locations of the emissivity tables Transmittance Compensation of the reflected ambient radiation Smoothing filter Operation mode and hold time of the data memory Parameters of the ATD function Linearization function Status display of the LEDs Temperature unit °C/°F Automatic shutdown

ATD-(Automatic Temperature Detection) function

Automatic temperature detection at discontinuous processes

Scope of delivery

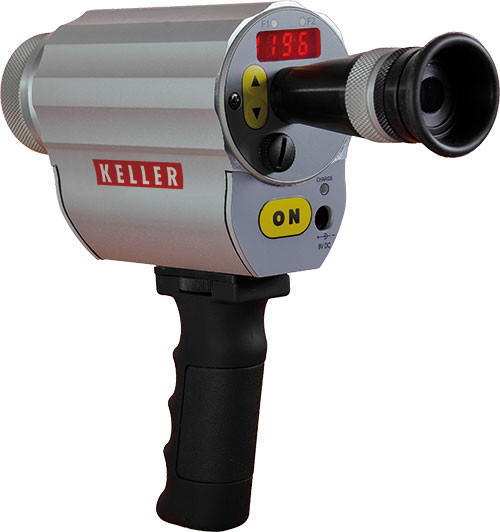

Pyrometer CellaCombustion PT Protective and carrying case Charger USB cable VK 11/D (1.8 m) Software CellaView Manual (short)

Software

CellaView
