Pyrometer CellaTemp PK 25

The CellaTemp® PK 25 is equipped with a special blocking filter. As a result, the measurement is not affected by daylight. The infrared thermometer also reacts much less sensitively to reflective interfering radiation in the environment than conventional devices working at short wavelengths. The Cel

Pyrometer CellaTemp PK 25

Article description

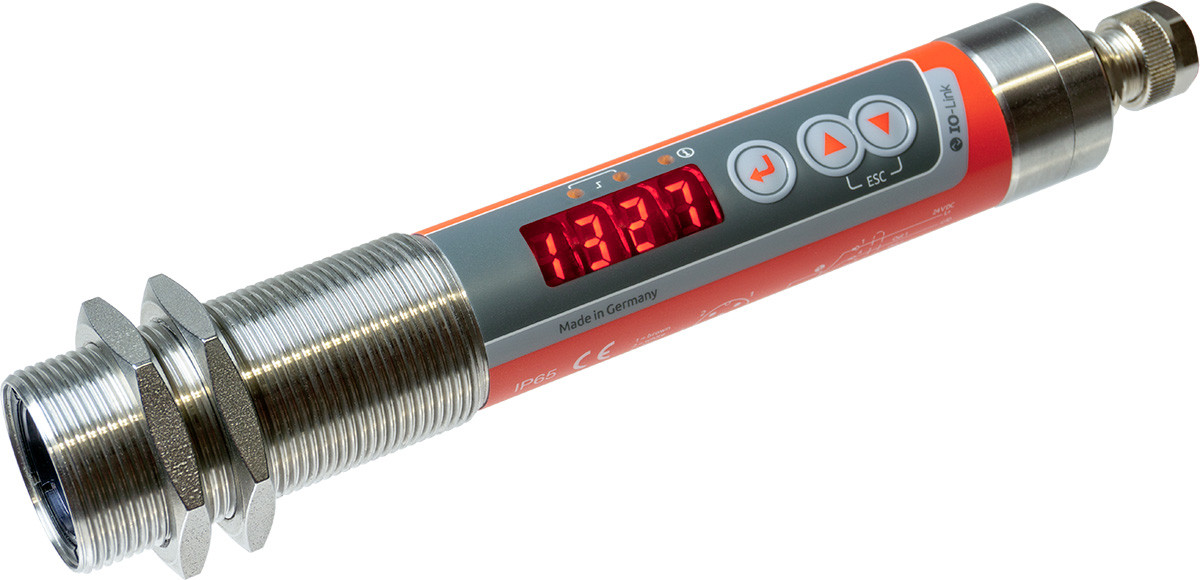

The CellaTemp® PK 25 is equipped with a special blocking filter. As a result, the measurement is not affected by daylight. The infrared thermometer also reacts much less sensitively to reflective interfering radiation in the environment than conventional devices working at short wavelengths. The CellaTemp® PK 25 is used for a wide variety of applications in the metalworking industry and in particular for measuring the temperature of aluminium and bare metals at low temperatures. Due to the blocking filter, it can also be used for measurements in processes in which diode, Nd:YAG or CO2 lasers are used for heating. The energetically high laser radiation does not influence the measurement. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.

This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:
  • Measuring range 75 to 650 °C
  • switching output universally configurable
  • high optical resolution due to precision lenses
  • IO-Link interface
  • all parameters can be set via pushbutton on the sensor or via interface from the plant control system
  • 2 x switching outputs PNP open collector
  • very simple mounting via M30 central thread
  • large and bright LED display
This video will only be loaded from YouTube once you click the play button. When loading the video, data will be transmitted to YouTube and processed outside of our control. You can find more information in our privacy policy.
Improved & Smart CellaTemp PK pyrometers

Pyrometer CellaTemp PK 25
Properties
Version
Measuring range
75 - 650 °C
Focus distance
0,3 m
Your selection will affect other settings
You can request this article from us

Version CellaTemp PK 25 BF 1
Measuring range 75 - 650 °C
Target size 7 mm
Focus distance 0,3 m
Shape of the measuring field round
Measuring principle one-colour

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaTemp PK 25

Technical Data

Measurement parameters

Measuring range 75 - 650 °C
Sensor Photo diode
Spectral range 1,8 - 2,4 μm
Response time t90 ≤ 2 ms (T > 200 °C)
≤ 15 ms (T > 125 °C)
≤ 50 ms (T > 100 °C)
≤ 200 ms (T > 75 °C)
Measurement uncertainty 0.3 % of temp. reading [°C] plus 4.0 K
Repeatability 2 K
Temperature coefficient 0.25 K/K (T < 500 °C)
0.05 %/K (T > 500 °C)
Resolution current output 0.1 K + 0.005 % of selected measuring span
Resolution interface 0.1 K
Resolution display 0.1 K < 200 °C
1 K ≥ 200 °C

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x PNP Open Collector 24 V DC, 2 x 150 mA max.
Test input 10 - 34 V DC (acc. to IEC 61131-2)
Interface IO-Link V1.1.3
Power supply 18 - 32 V DC
Current consumption ≤ 50 mA at 24 V DC

Features

Display 4-digit LED display red, digit-height 8 mm
Status display 3 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection (A-coding)
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)

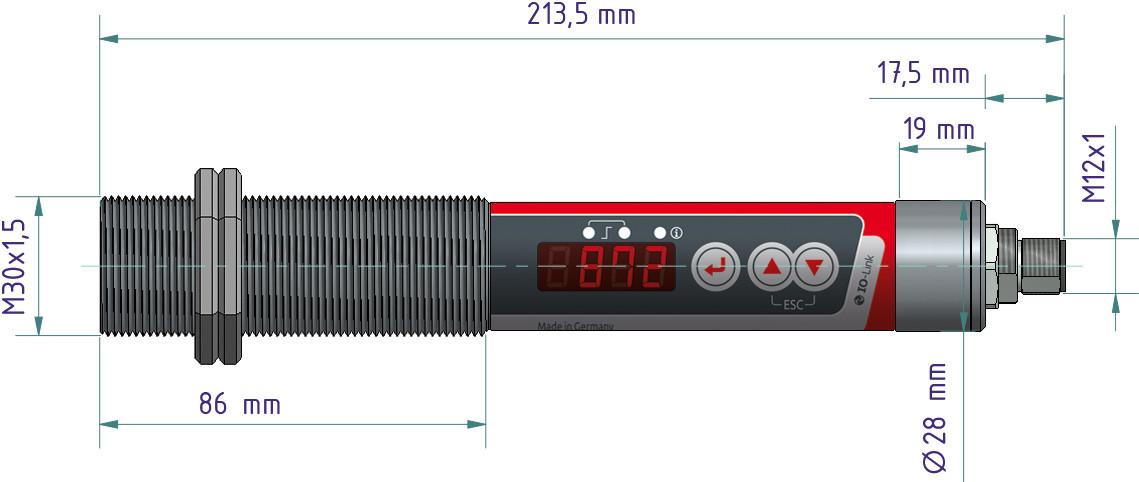

Dimension Ø 30 x 210 mm (without plug)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.4 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Emissivity via quick adjustment
Transmission of the protective glass
Damping time constant
Hold time of the maximum value memory
Operating mode, source and switching point, switch-on and switch-off delay of the switching contacts
Temperature correction for process-specific influences using interpolation points (X/Y pairs)
Vitality indicator
Service parameters
Reset to factory setting
Key lock
Anzeige der Temperatur oder "run" im Display
Temperature unit °C/°F
Simulation of temperature

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value
Diagnostic function Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection for power supply, analogue output and switching output

Scope of delivery

Scope of delivery Infrared thermometer CellaTemp PK
Manual (short)
2 fixing nuts

Software

Software SW 50

Pyrometer CellaTemp PK 25

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaTemp PK 25

Downloads

Brochure CellaTemp PK PKF PKL
en
Brochure Flyer IO-Link
en
Manual CellaTemp PKx IO-Link
en
Quick guide CellaTemp PKxx IO-Link
en
Declaration of conformity Declaration from Conformity PKxy
en
UKCA Declaration from Conformity PKxy
en
EAC Deklaration PK-PA-PT
en

Pyrometer CellaTemp PK 25

Accessories

Pyrometer CellaTemp PK 25

IO-Link IODD

Type Datei Dateigröße
IODD PK25AF1_20221222.zip 383 KB Download
IODD PK25BF1_20240807.zip 1201 KB Download

Pyrometer CellaTemp PK 25

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PK 25 BF 1_202408_en.pdf 70 KB Download
MC PK 25 AF 1_202302_en.pdf 100 KB Download

Pyrometer CellaTemp PK 25

Measuring field calculator

Pyrometer
  • PK 25 BF 1 (0,3 m)
PK 25 BF 1 (0,3 m)
Graphic length
mm
Measuring distance (mm)0244872961201441681922162402642887.00 mm
Measuring distanceMeasuring field diameter
0.00 mm21.40 mm
12.00 mm20.82 mm
24.00 mm20.25 mm
36.00 mm19.67 mm
48.00 mm19.10 mm
60.00 mm18.52 mm
72.00 mm17.94 mm
84.00 mm17.37 mm
96.00 mm16.79 mm
108.00 mm16.22 mm
120.00 mm15.64 mm
132.00 mm15.06 mm
144.00 mm14.49 mm
156.00 mm13.91 mm
168.00 mm13.34 mm
180.00 mm12.76 mm
192.00 mm12.18 mm
204.00 mm11.61 mm
216.00 mm11.03 mm
228.00 mm10.46 mm
240.00 mm9.88 mm
252.00 mm9.30 mm
264.00 mm8.73 mm
276.00 mm8.15 mm
288.00 mm7.58 mm
300.00 mm7.00 mm
